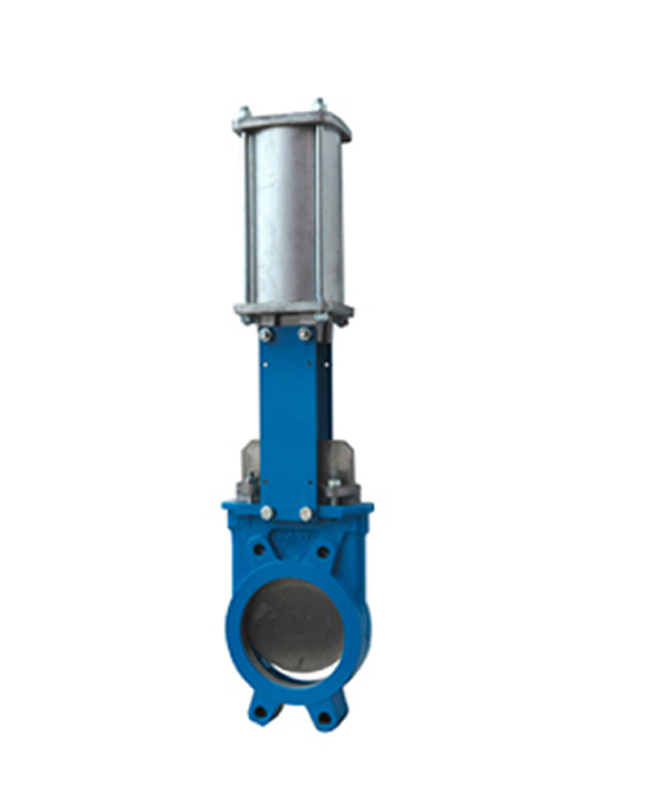

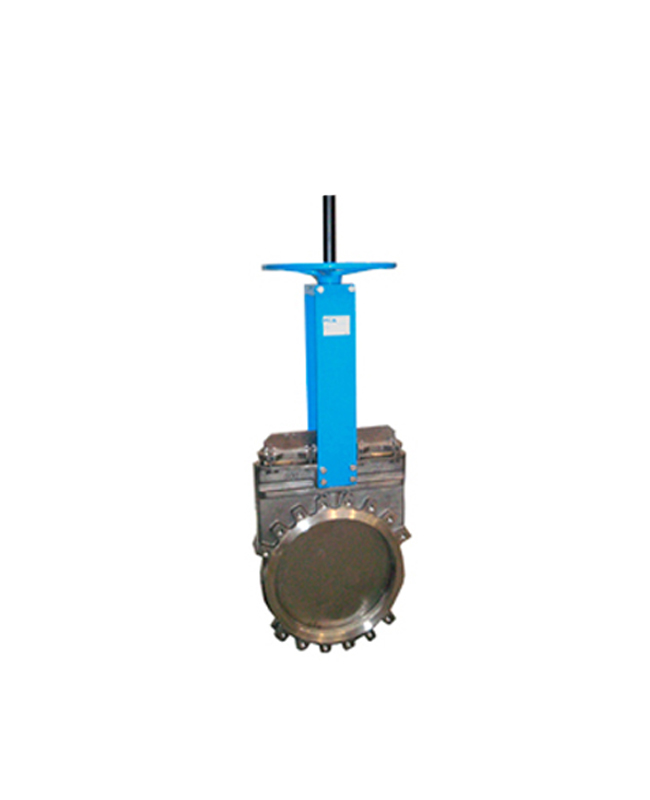

The GS model FCA knife gate valve is provided with a full bore and cast monoblock body. The standard model is wafer type to fit between flanges according to DIN PN10 or ANSI150.
Body provided with internal back blade supports to improve its tightness feature. Gate made of stainless steel, polished on both sides with rounded edges to extend the life of the seals and packing.
Design Standard | ANSI / DIN |
---|---|
Pressure | DN50 to DN250: 10 bar DN300 to DN400: 6 bar DN450: 5bar DN500 to DN600: 4bar |
Sizes | DN50/2'' to DN1200/48'' |
Sectors | Hydro Power Plants and Dams Minerals Others Power Pulp and Paper Steel Industry Thermal Power Plants Water Water Distribution Water Treatment |
More Information
Materials | |
---|---|
Seat | EPDM, Metal/Metal, Nitrile, PTFE, Silicone, Viton |
Operation type | Bevel Gear, Electric Actuator, Handwheel, Hydraulic Actuator, Lever, Pneumatic Actuator |
Applications | Charged fluids, Paper pulp, Sludge, Solids |
Accessories & Options | Bonnet, Deflector cone, Emergency System, Emergency closing devices, Filters, Injection holes, Junction box, Limit Switches, Proximity switches, Reinforced socket, Scraper, Solenoid valves, Stem extension, V or pentagonal port |
Contact us and we will help you with any special application for this valve
